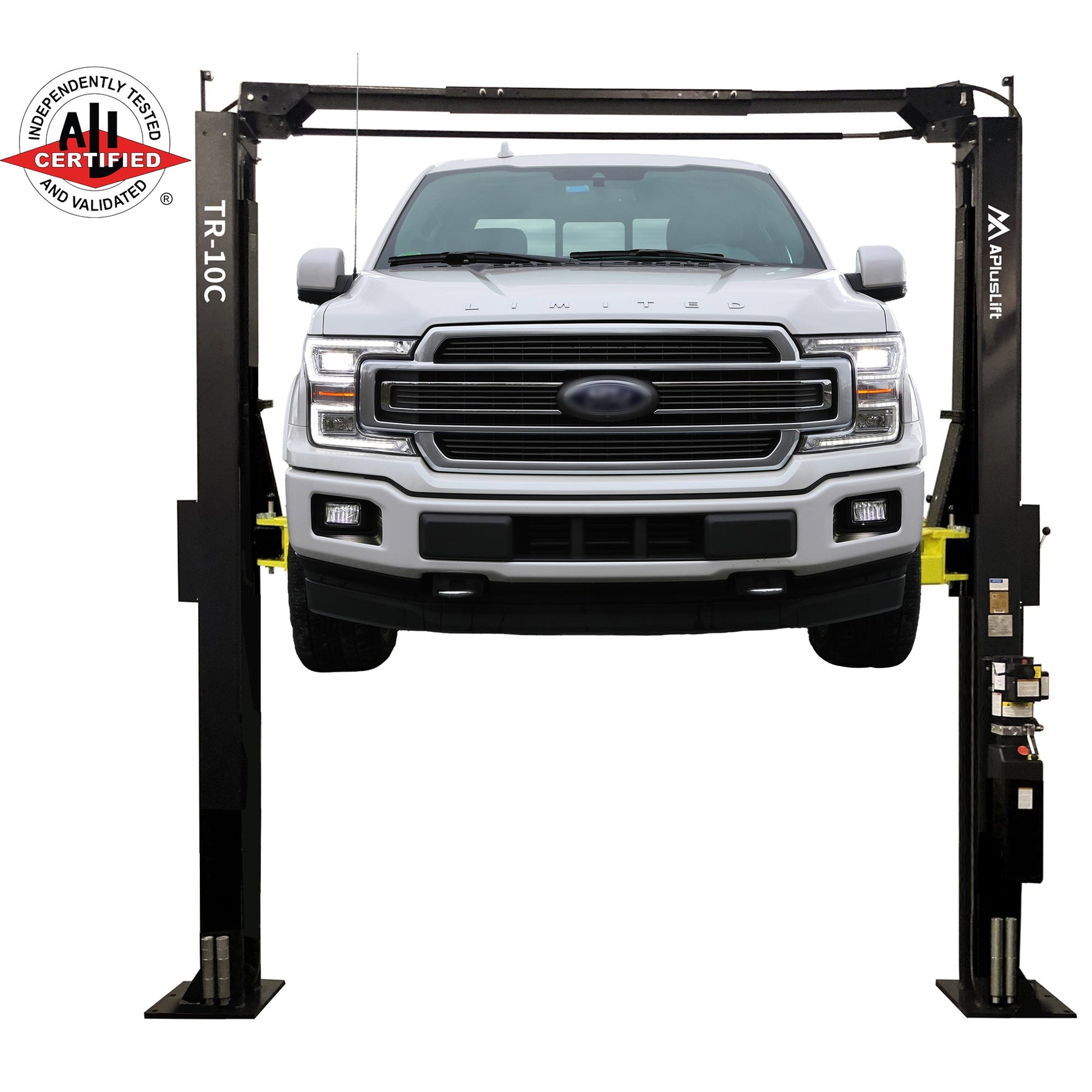

• APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Main

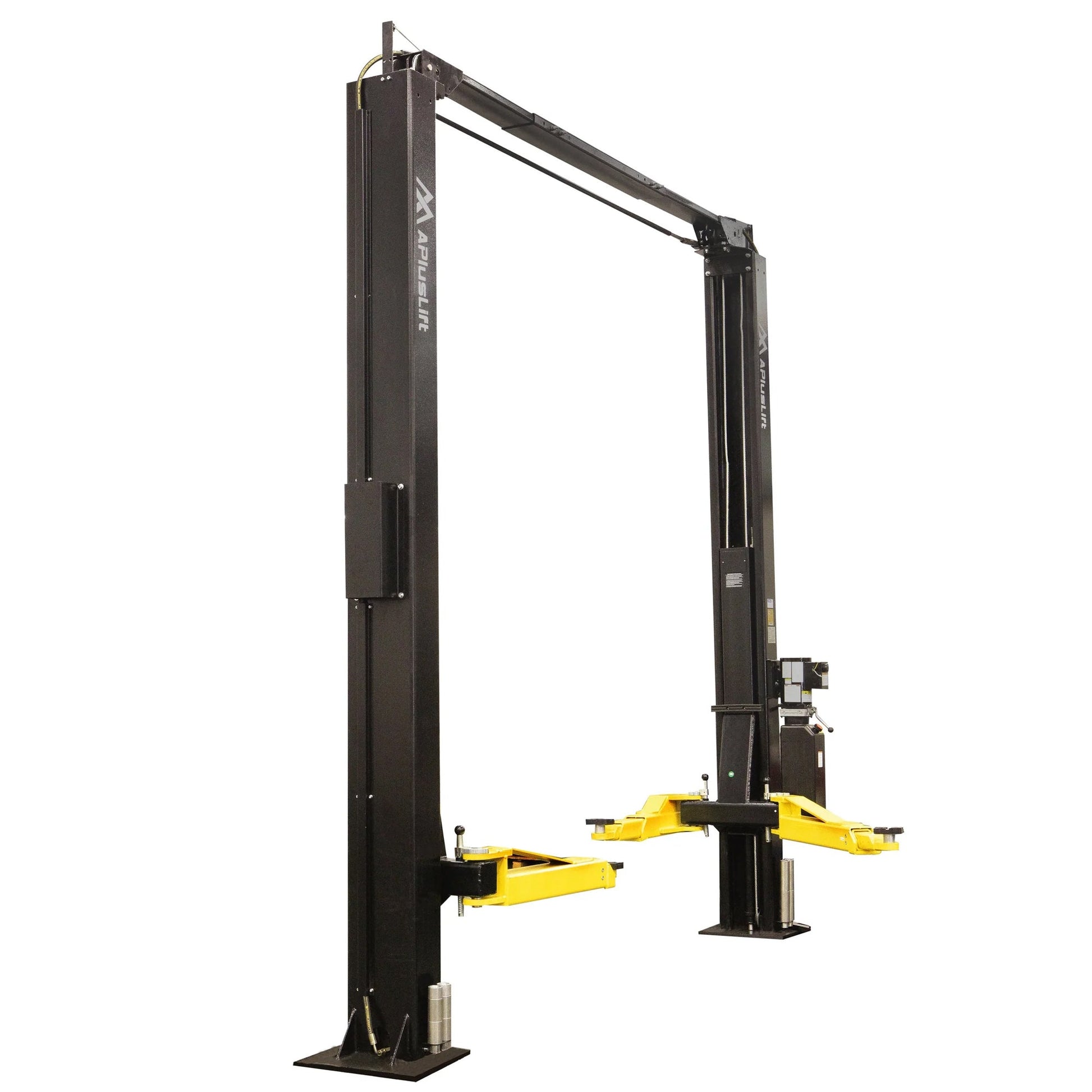

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Side View

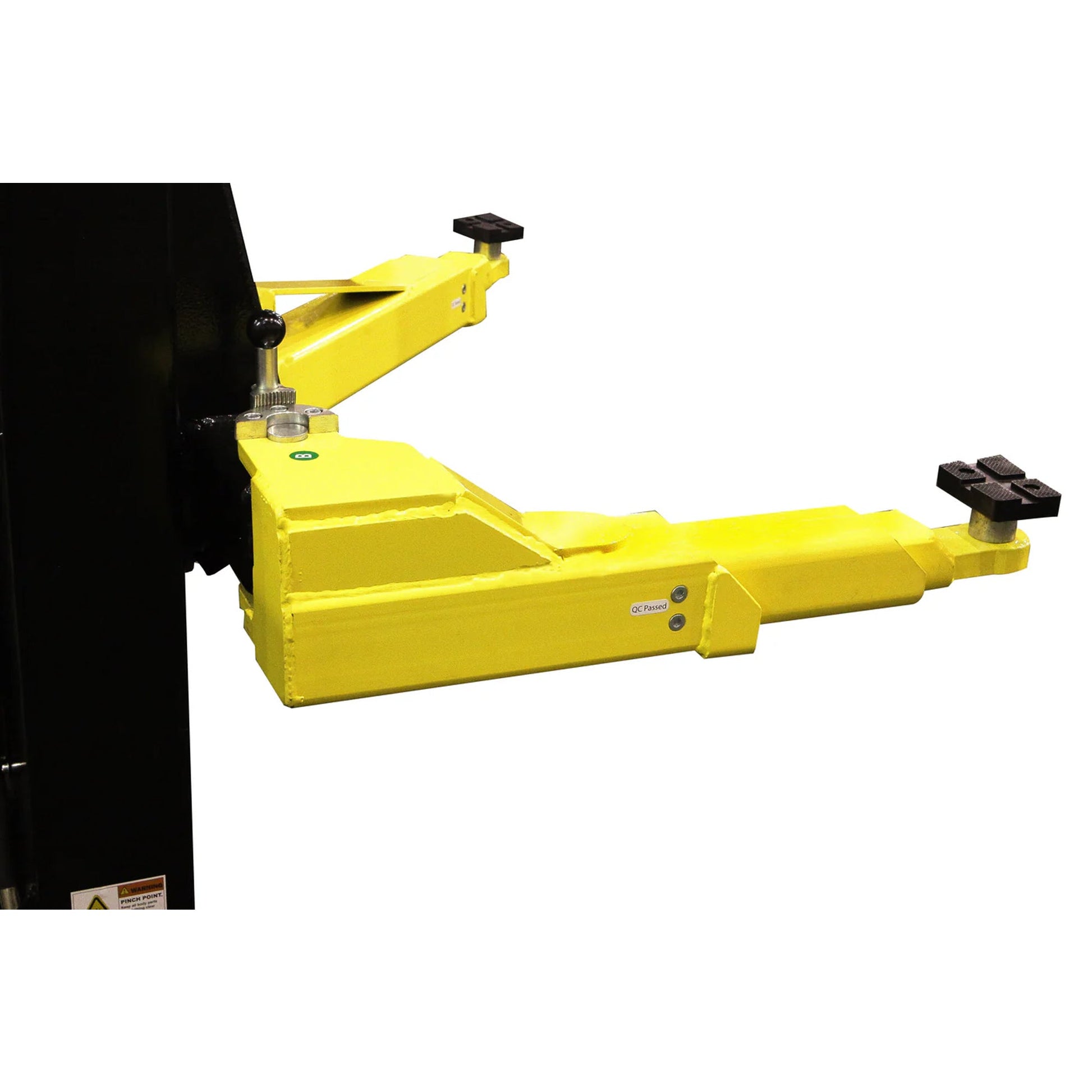

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Arm

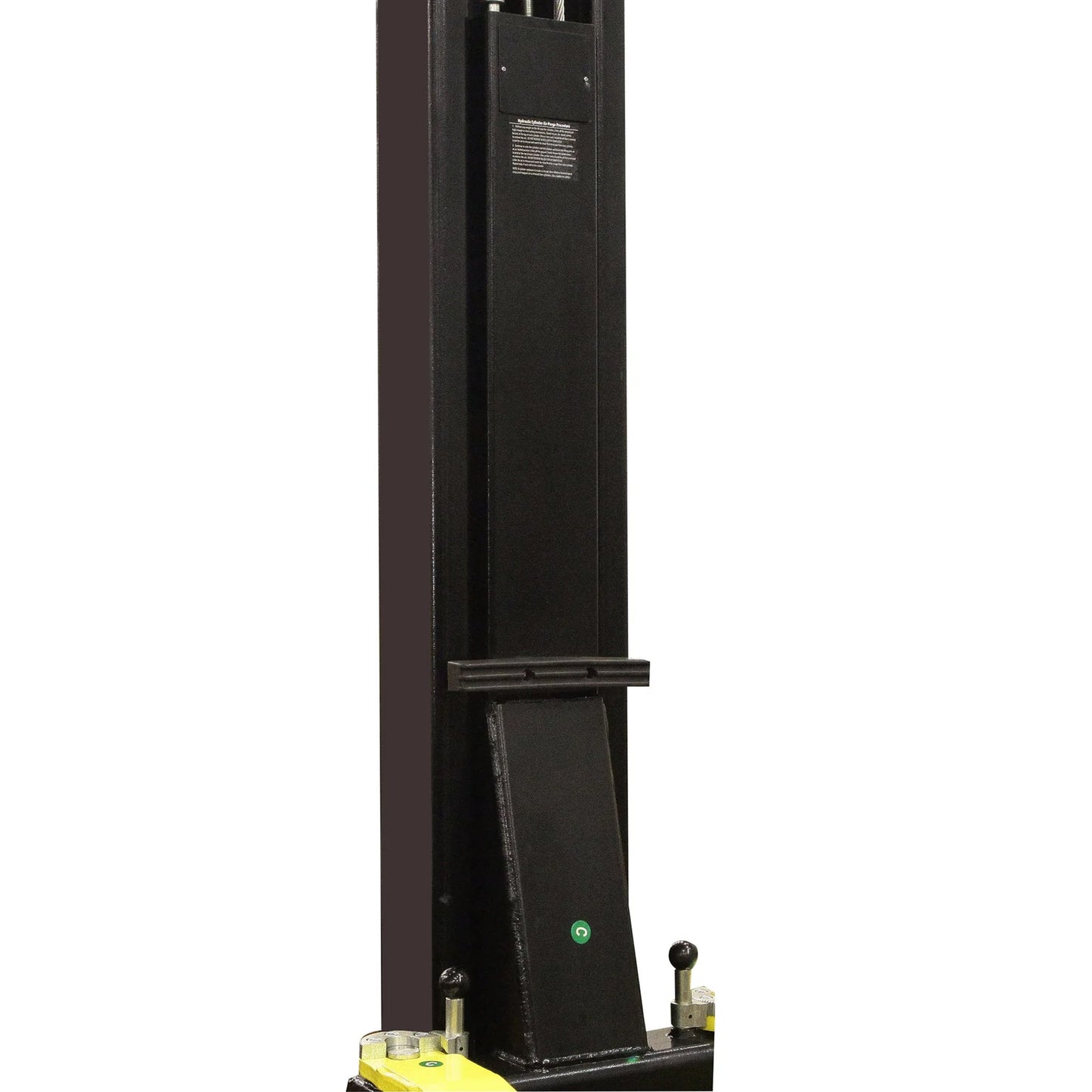

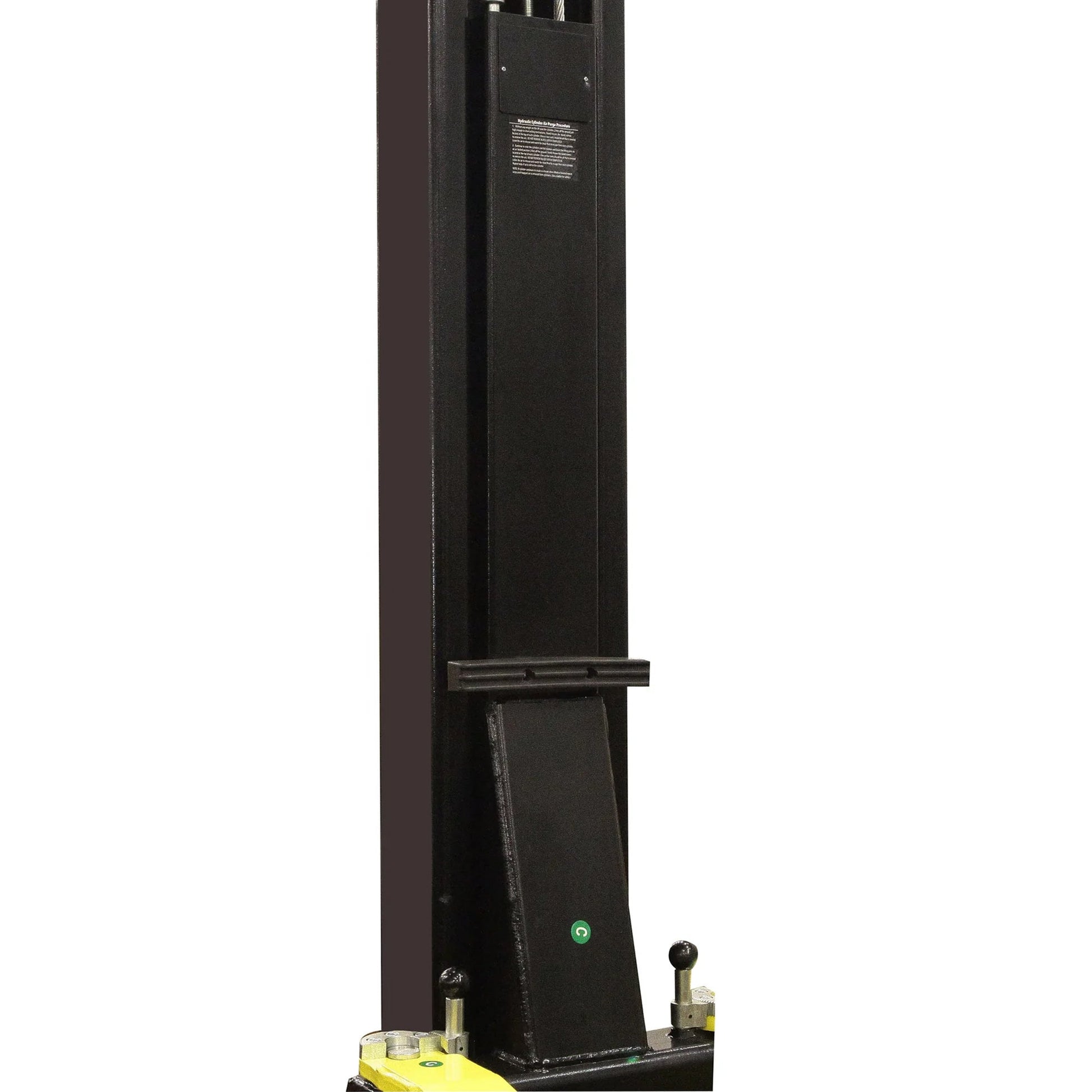

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Carriage

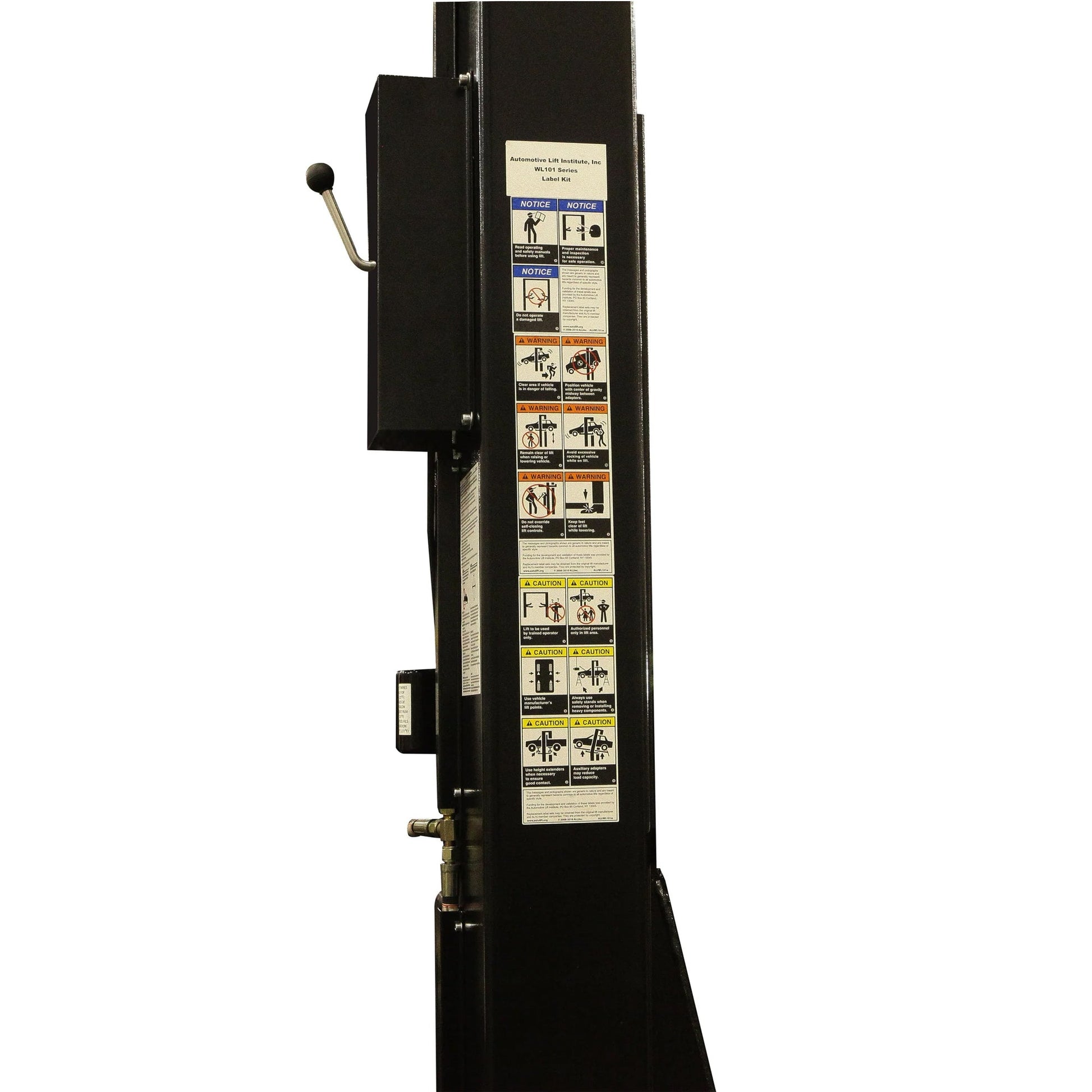

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Column

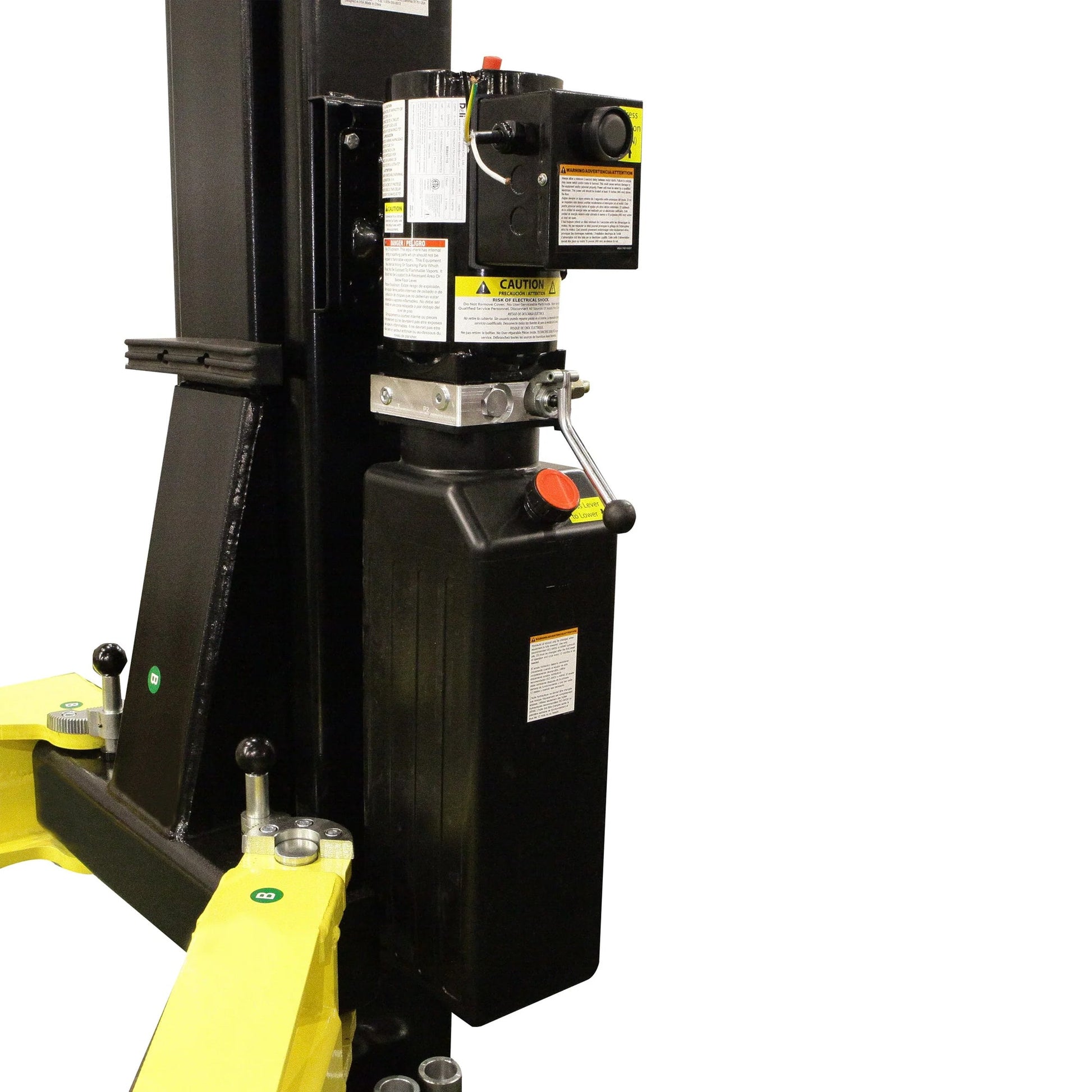

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Power Unit

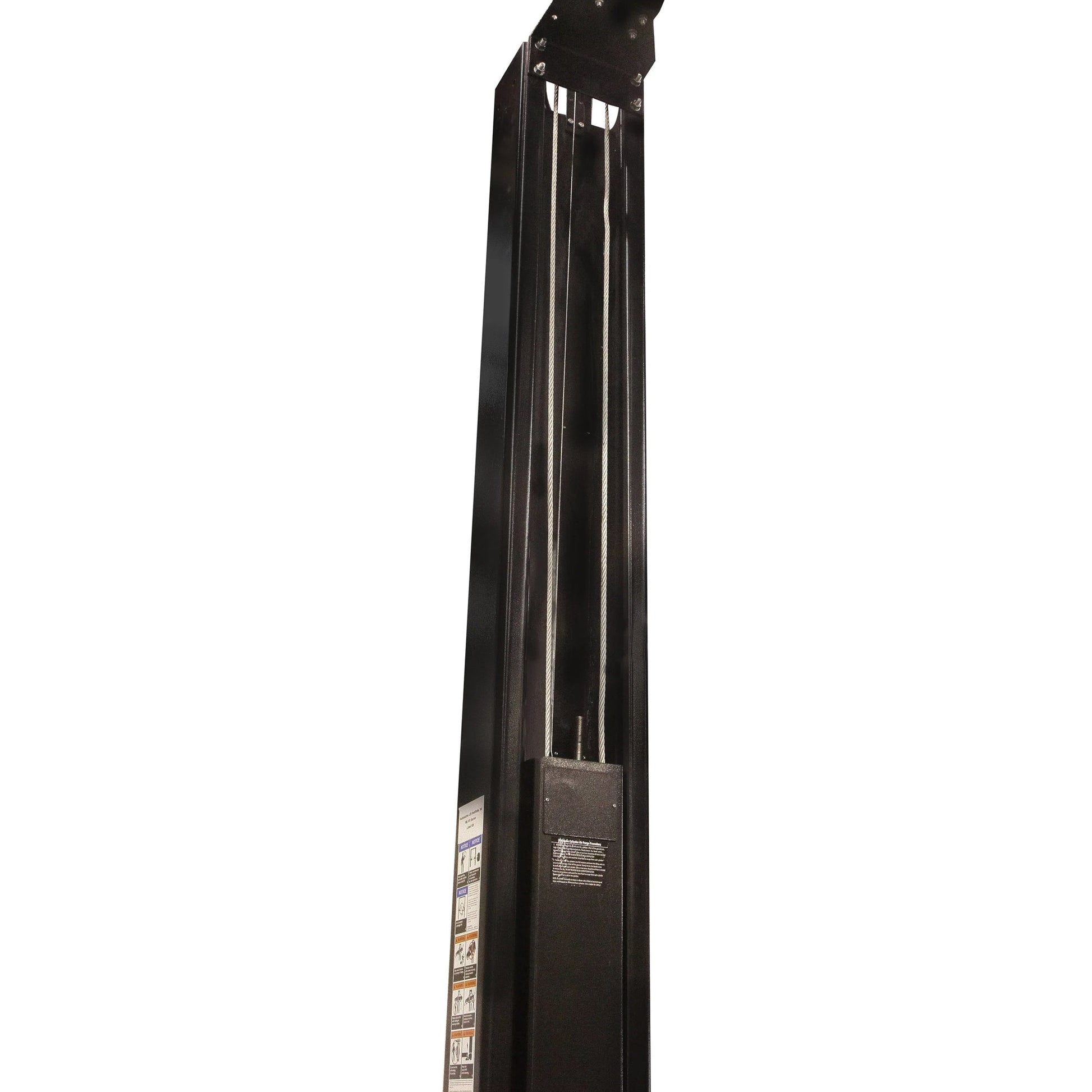

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Safety Cable

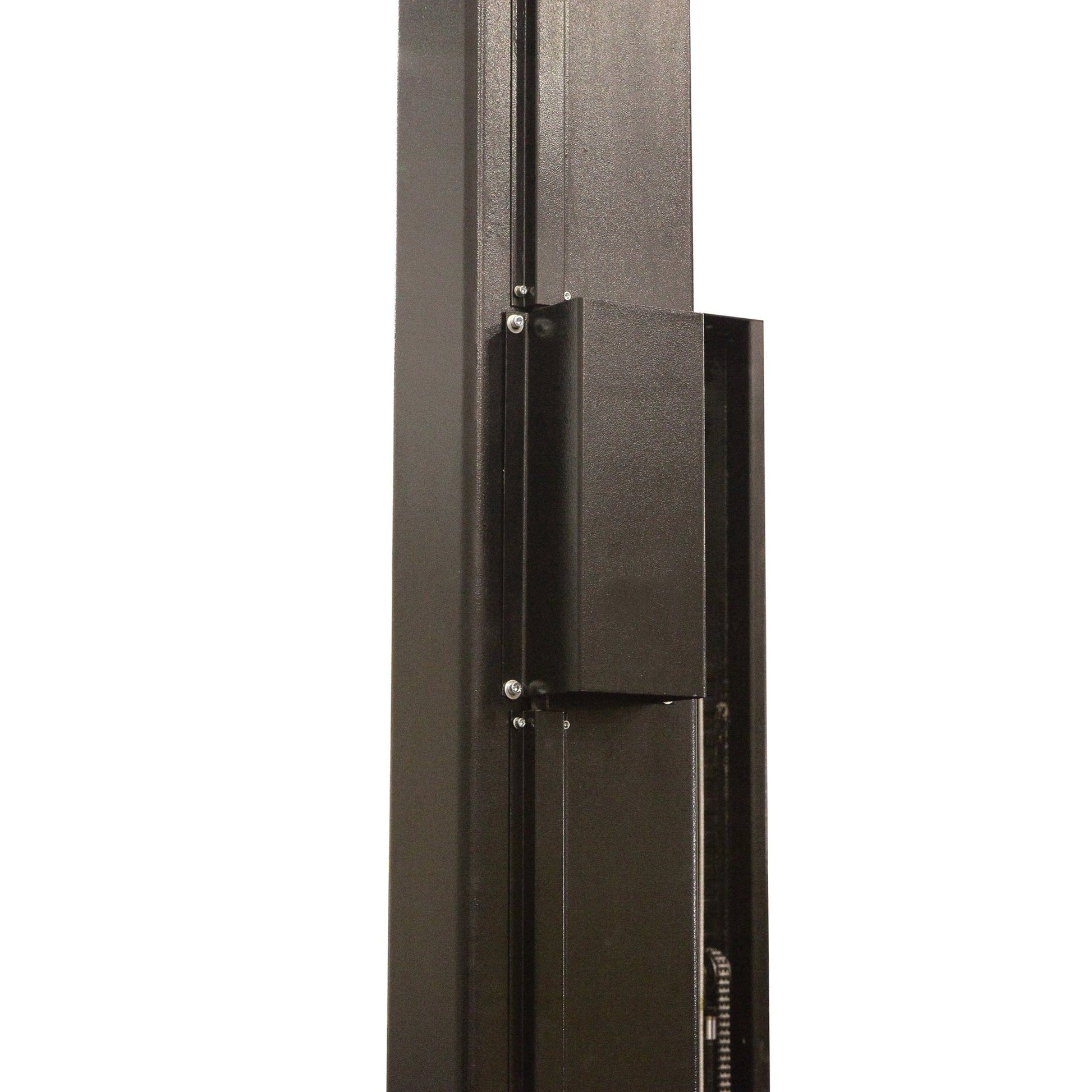

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Lock
  • APlusLift TR-10C Car Lift Optional Parts

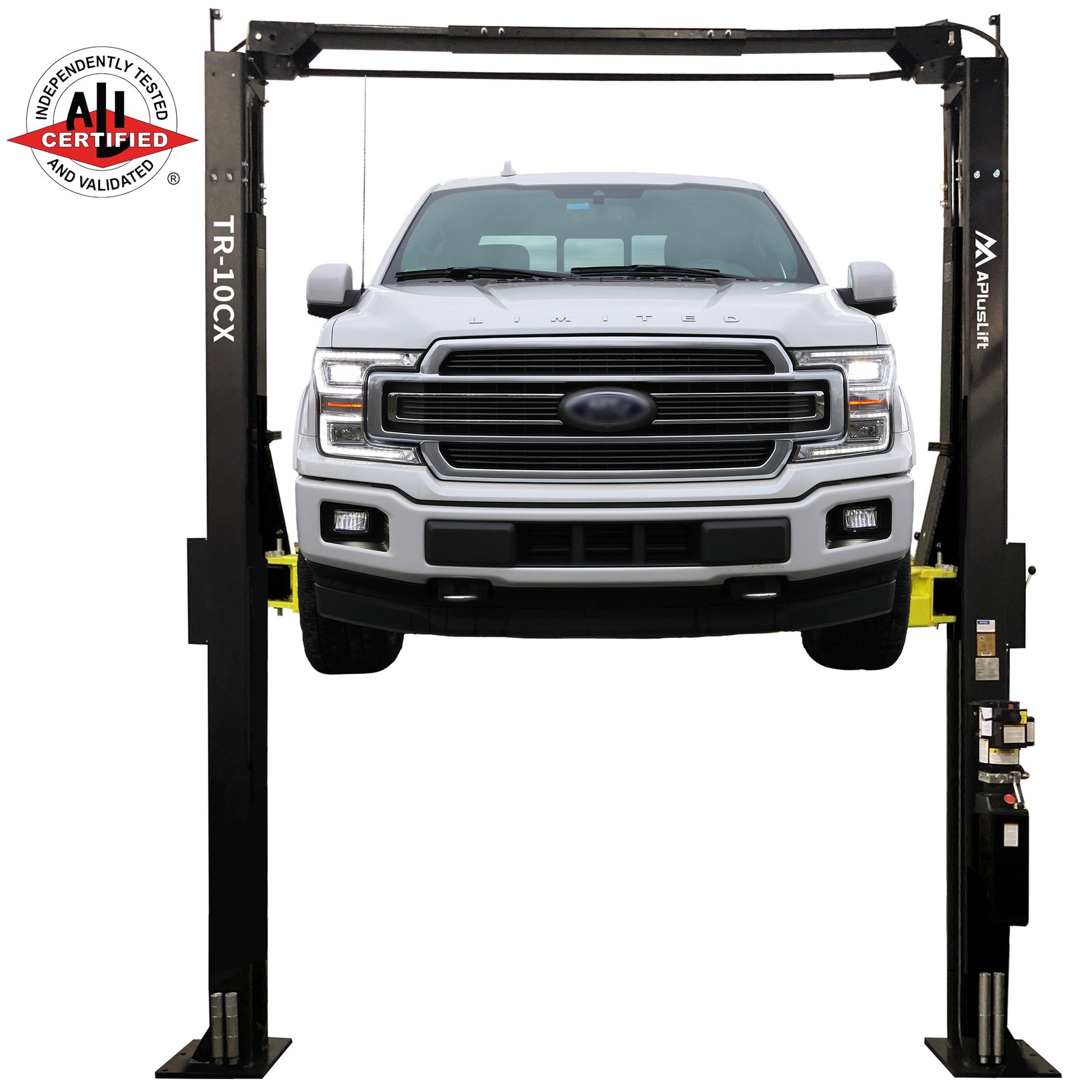

  • APlusLift Falcon TR-10CX ALI Certified 10,000LB 2-Post Over Head Car Lift - Main

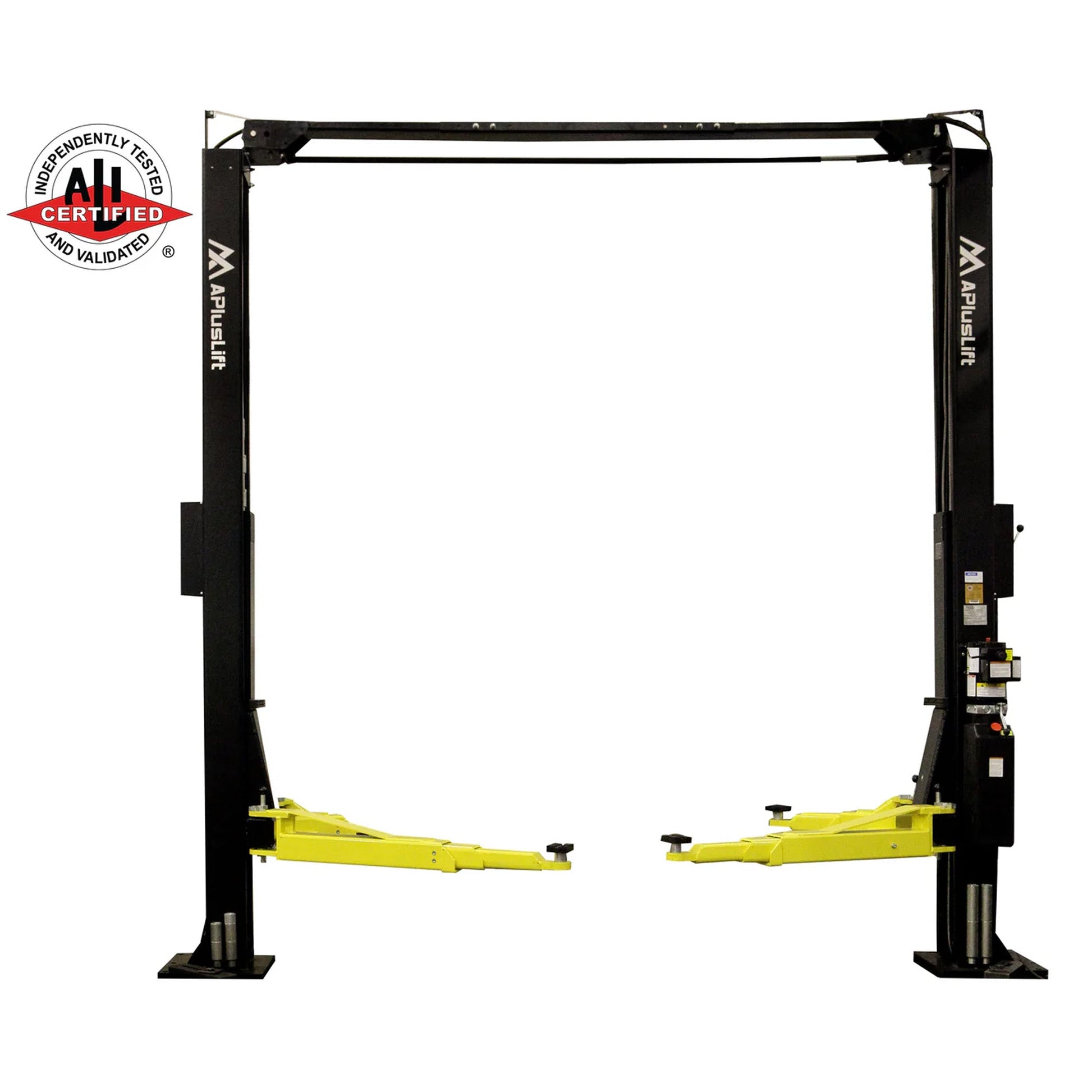

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift

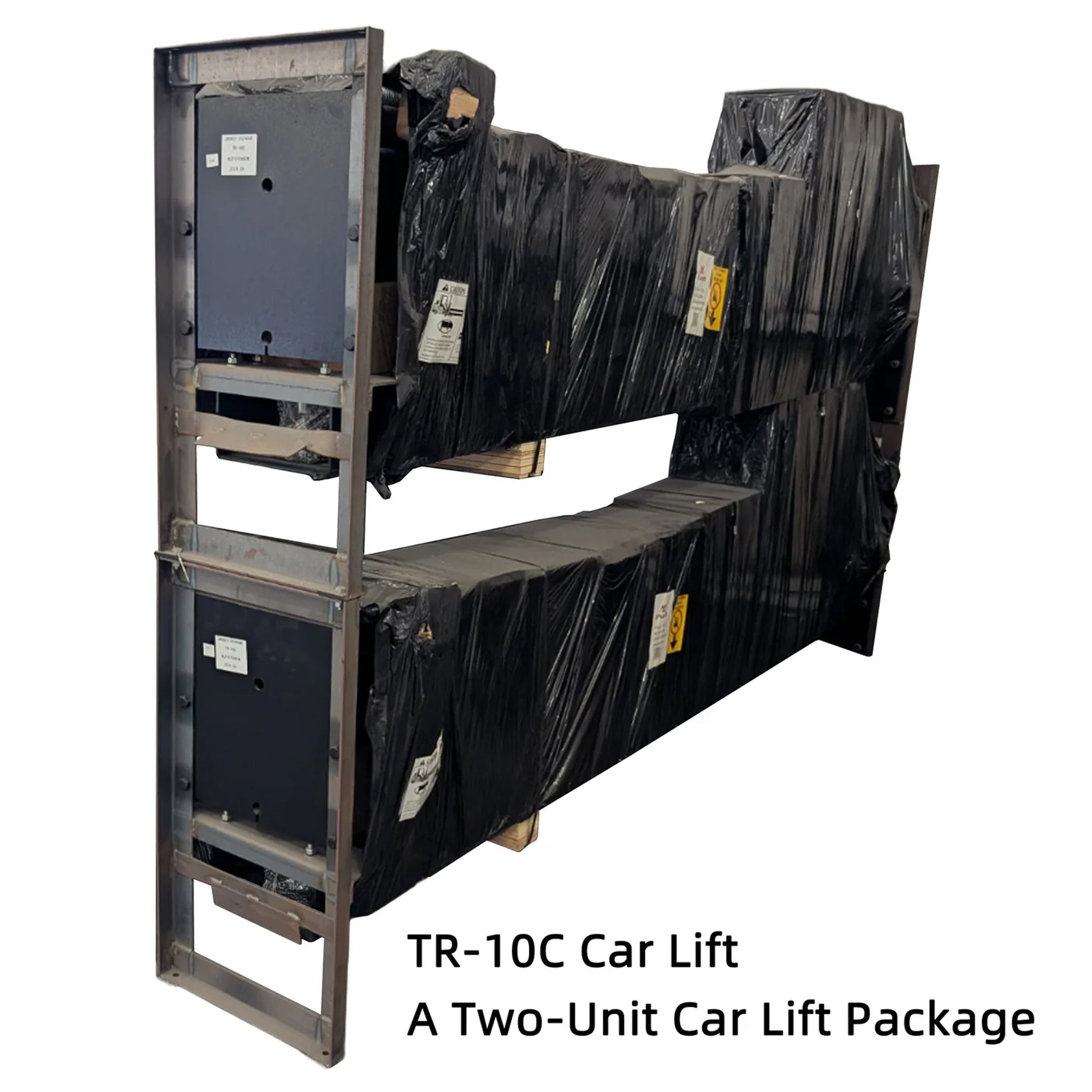

  • APlusLift Falcon TR-10C ALI Certified 10,000LB 2-Post Over Head Car Lift - Package
1 12

ALI Certified Falcon 10,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty

ALI Certified Falcon 10,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty

$2,099.00
$2,099.00
SAVE % Sold out

🏋️‍♂️ 4,000 lbs Capacity: For heavy-duty lifts.

🚚 Free Shipping: On orders over $500!

🔒 Safety Locks: Secure and reliable operation.

💸 5% Off: Use code "F5" – 24 hours only!

Size
Delivery Option

HURRY! ONLY 5 LEFT! ORDER NOW AND SAVE 10%. OFFER ENDS IN 24 HOURS!

ALI Certified Falcon 10,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty

$2,099.00
$2,099.00
SAVE % Sold out

    All 2-Post Car Lifts

    • ALI Gold Label Certified: Meets the industry’s highest safety benchmarks, ensuring your equipment is fully compliant with commercial insurance and OSHA-based requirements.

    • Industry leading 3 YEAR WARRANTY (a $499 value!)

    • Three Sets of Truck Adapters (High Extension) Included

    • Three variable Drive Through 88 1/8", 94 1/16", 100"! Triple Telescoping Arm Design!

    • Dual Direct Drive Hydraulic Cylinders

    • All Robot Welded Structure with Durable Powder Coated Finish

    • Flawless Manual Single Point Lock Release System

    • Oversized 57" Tall Carriages

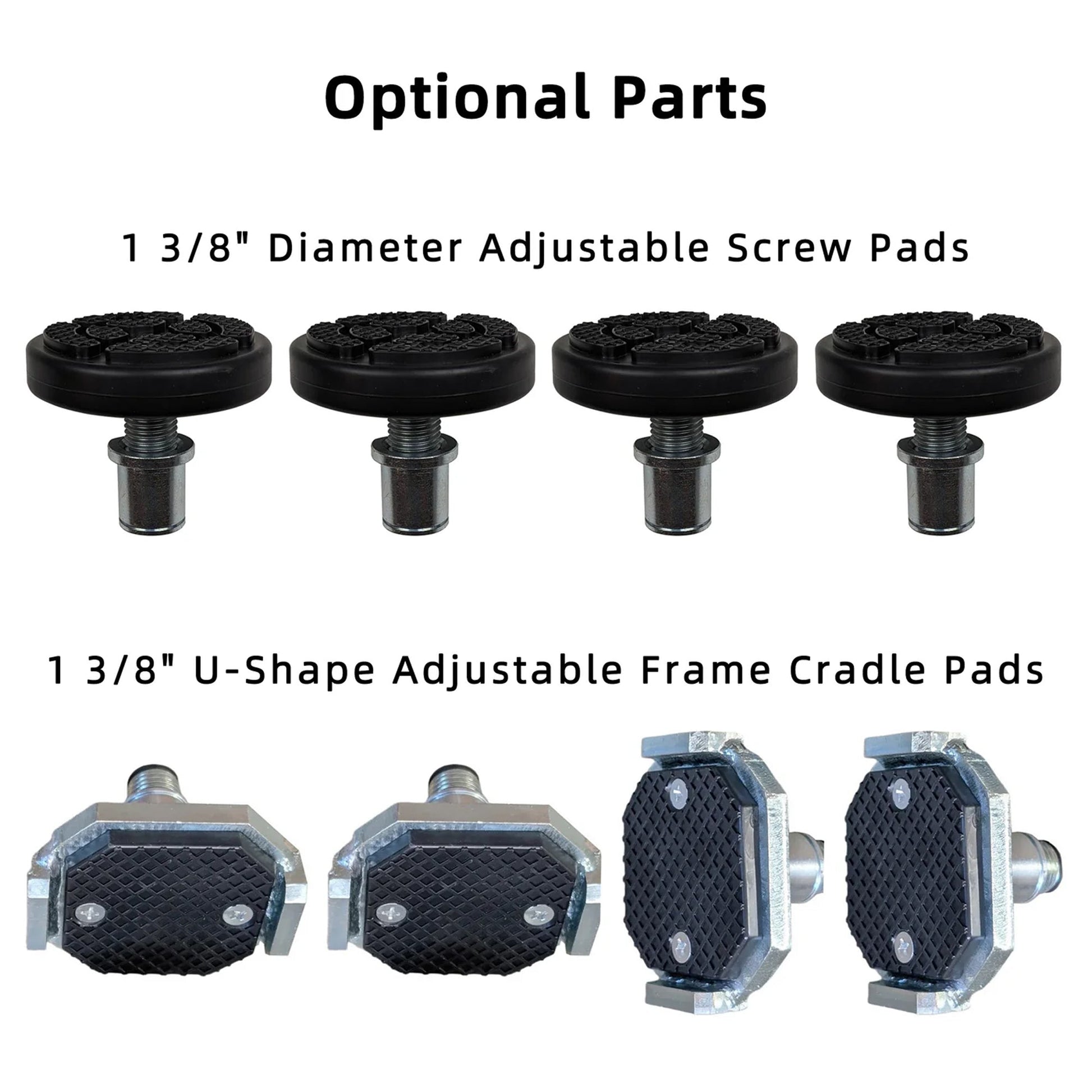

    • Optional Parts: 1 3/8" Adjustable Screw Pads, 1 3/8" U-Shape Adjustable Frame Cradle Pads, and 90 Degree Power Unit Brackets.

    Falcon TR-10C and TR-10CX models achieve the prestigious Gold Label for ALI Certification! This mark signifies rigorous testing and compliance with the toughest industry standards, and they satisfy all insurance company requirements. To learn more about the Automotive Lift Institute (ALI) and the ANSI/ALI/ETL Certification Program, please visit www.autolift.org.

    We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! Replacement parts are available upon request. We welcome suggestions to improve our products and service!

    Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

    Warehouse Pickup Locations (Contact Us for $400 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Las Vegas (NV), Mansfield (OH), Mobile (AL), Tacoma (WA), and Watsontown (PA).

    Specifications
    Model TR-10C and TR-10CX
    This Model    		 HW-10ASY
    for Comparison
    Manual
    • TR-10C/X Manual
    • Footprint
    • ALI Certificate
    • Vehicle Lifting Points (for Purchased Customers Only)
    		 HW-10ASY Manual
    Certificate ALI Certified CE Certified
    Lock Release Single Point Release Single Point Release
    Warranty 3 Years (36 months) 3 Years (36 months)
    Lifting Capacity 10,000 LB 10,000 LB
    Overall Height
    • 143 3/4" (TR-10C)
    • 166" (TR-10CX)
    		 141 3/16"
    Overall Width
    • 140 7/16" (narrow spacing)
    • 146 3/8" (medium spacing)
    • 152 1/4" (wide spacing)
    		 139 1/8" (standard)
    140 15/32" (post rotated)
    Maximum Lift height with Truck Adapters 78" 81"
    Maximum Lift height without Truck Adapters 69" 75"
    Minimum Height of Adjustable Pads from Ground 4" 4"
    Drive Through Width (Carriage to Carriage)
    • 88 1/8" (narrow spacing)
    • 94 1/16" (medium spacing)
    • 100" (wide spacing)
    		 104" (symmetric)
    97" (asymmetric)
    Column to Column Width
    • 97 1/8" (narrow spacing)
    • 103 1/16" (medium spacing)
    • 109" (wide spacing)
    		 113" (symmetric)
    107" (asymmetric)
    Driving Mode Direct Drive Dual hydraulic cylinders, chain drive
    Motor 220V Single Phase 3HP 10A (recommend a 20A breaker) 220V Single Phase 3HP 10A (recommend a 20A breaker)
    Time to full rise 50 seconds 50 seconds
    Hydraulic Oil 3-5 gallons AW32/AW46 (not included) 3-5 gallons AW32/AW46 (Not Included)
    Truck Adapters 3 sets: 1 1/2", 3", and 6" tall 1 set: 4" tall
    Front Arms 3 Stage reach from 19 5/16" to 41 7/8" Straight Front 3 Stage reach from 22 7/8" to 42 5/8"
    Back Arms 3 Stage reach from 37 5/16" to 60 3/16" Straight Rear 2 Stage reach from 33 5/8" to 52 7/8"
    Column Steel Thickness 1/4" 13/64"
    Carriage Steel Thickness 1/4" 15/64"
    Carriage Yoke Thickness 9/16" 9/16"
    Arm Steel Thickness 1/4" 15/64"
    Base Plate Steel Thickness 13/16" 5/8"
    Shipping Weight 2000 LB and 200 LB (2 ft height extension for TR-10CX) 1470 LB and 120 LB
    Shipping package size 142"L x 22"W x 38"H and 30"L x 17"W x 17"H (2ft height extension for TR-10CX)
    • 113"L x 22"W x 40"H (Car Lift)
    • 38"L x 17"W x 14"H (2ft Height Extension Crate)
    Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
    Model TR-10C and TR-10CX
    This Model    		 HW-10ASY
    for comparison

    Features

    • Single-point safety lock release
    • Automatic arm lock restraints
    • Relief valve built-in power pump to prevent overloading
    • Door guard protection rubber
    • Up-limit switch to protect cylinders working stroke used in safe length scope
    • Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
    • Stiffened base plate 13/16" thickness
    • Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
    • Lifting operation by pressing the "UP" button on the motor
    • Manual lowering operation by pressing the lever
    • Relief valve built-in power pump to prevent overloading
